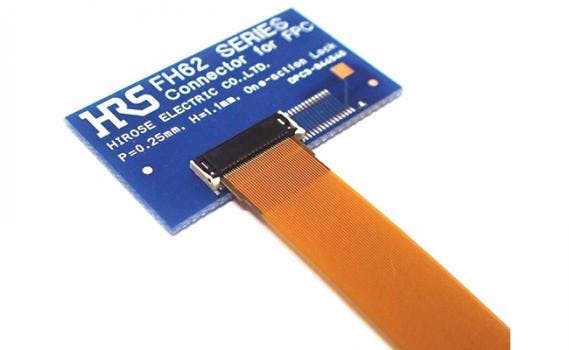

The space-saving FH62 Series FPC connector is compact with a single-action lock designed for automatic assembly to simplify the design process. Supporting USB 3.0, Embedded DisplayPort ver1.3 and MIPI D-PHY ver1.1 standards, the connector saves PCB space, vital in portable electronic applications. With a 0.25 mm pitch, 1.1 mm height and a width of 4.0 mm, the connector enables a reduction in size of consumer, medical, point-of-sale and other electronic devices.
The FH62 Series has a top contact design that offers excellent impedance characteristics and high-speed data transmission. The connector design has a low-insertion force and a high-retention force for easy single action insertion. The rugged single-action lock design provides the reliability required in demanding portable electronic devices that regularly experience shock and vibration. The user-friendly connector also has wide guides for smooth FPC insertion.
The FH62 Series is available in a 35-position version that is halogen-free and RoHS compliant.
- Connector Type: Receptacle
- Recommended FFC/FPC: FPC
- Number of Positions: 35
- Contact Pitch: 0.25 mm
- Mounting Pitch: 0.5 mm
- FPC/FFC Insertion Direction: Horizontal
- Contact Orientation: Top
- Connector Height: 1.1 mm
- Connector Width: 4 mm
- Number of Rows (Lead/PCB Side): 2
- Contact Plating: Gold
- Rated Current: 0.25 A
- Mating/Unmating Cycles: 10
- Rated Voltage (AC): AC 30 V
- Rated Voltage (DC): DC 30 V
- Operating Temperature (Max.): 85?
- Operating Temperature (Min.): -40?
Features:
- Space-saving design
- Automatic single action lock design
- High FPC retention force
- Easy FPC insertion
- Supports 0.3mm-thick FPC
- Supports high speed transmission
