Single-Channel Power Supply

Aug. 22, 2018
Saelig Company's power supply delivers up to 16V at 8A.

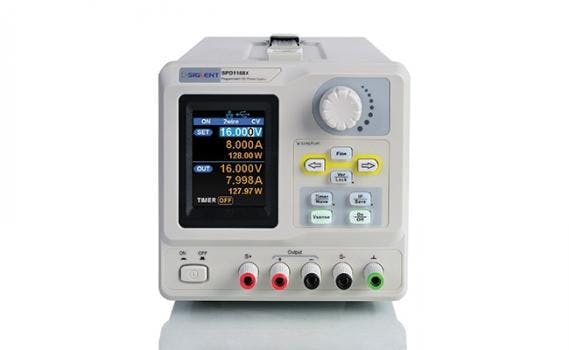

The Siglent SPD1168X Programmable Linear DC Power Supply is a single-channel 16V high performance power source with a 2.8-in. TFT-LCD display that also includes remote computer control capability and real-time waveform display. The SPD1168X features a high precision programmable output capable of delivering up to 16V at 8A (128W) with a remarkable minimum resolution of 1mV/1mA. The power source design features low ripple and noise (? 350uV RMS/3mVpp; < 2mA RMS) and fast transient response time (< 50us).


It also includes a 4-wire sense function for accurate voltage sourcing, especially with long lead situations or high resistance connections. The display provides 5-digit voltage and 4-digit current indication, a waveform display function, and timer features. Additional output short and overload protection ensures safety for education, production, and development applications.


The SPD1168X Programmable Linear DC Power Supply offers two output modes: 2-wire output mode, and 4-wire compensation output mode. The advanced design also includes an intelligent temperature-controlled fan to minimize noise. Five groups of system parameters can be saved and recalled. Easypower PC software is included, which allows PC control of the power supply and supports SCPI and LabView.

  • Channels: 1 CH
  • Power: 128 W
  • Output: 16 V / 8 A
  • Sense Compensation: Support
  • Resolution: 1 mV / 1 mA
  • Response Time: < 50 us
  • Display accuracy: 5 digits voltage; 4 digits Current
  • Timing output: Support



  • Single path high-precision programmable voltage output?16 V/8 A, total power up to 128 W
  • Stable, reliable, Low ripple, and noise?? 350 uVrms/3
  • mVpp; < 2 mArms
  • Fast transient response time: < 50 ?s
  • 5-digit Voltage, 4-digit Current Display, Minimum
  • Resolution: 1 mV/1 mA
  • Supports front panel timing output functions
  • 2.8 in. true color TFT- LCD 240 *320 display
  • 2 types of output modes: Two-wire output mode, 4-wire compensation output mode, Maximum compensation voltage 1V.
  • 100/120/220/230 V compatible design to meet the needs of different power grids
  • Intelligent temperature-controlled fan reduces noise
  • Clear graphical interface, with the waveform display function
  • Internal 5 groups of system parameter save/recall
  • Includes PC software: Easypower, supports SCPI, LabView driver
