iVu Color Vision Sensors

Aug. 30, 2018

iVu Color vision sensors can be used to monitor objects for color or color variations, determine the presence and color of one or more features, and verify that an object matches a reference color or colors. iVu Color vision sensors can also inspect objects based on type, size, orientation, or position. The tools that enable all these inspections can be used alone or in combination to solve more complex applications.

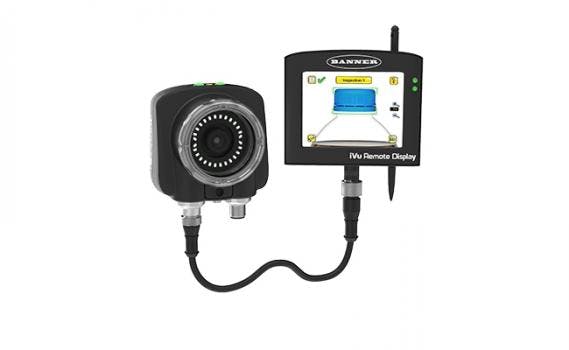

iVu Color vision sensors have a graphical user interface and menu-driven tools to simplify setup and make it possible to manage and monitor inspections without a PC. Inspection parameters can be changed while inspections are in progress with full runtime editing to reduce downtime. They are available in models with an integrated or remote touchscreen.


iVu Color vision sensors are all-in-one solutions that combine camera, controller, lens, and lighting. They have an interchangeable lens design, including C-mount model options, for increased range and resolution and greater application flexibility. They are available with or without an integrated ring light, including red, blue, green, white, infrared or UV model options. A wide range of additional vision lighting products are also available.


Vision sensors in the iVu Series have a compact design and a rugged IP67-rated housing that protects against many environmental challenges common to industrial environments. They support multiple industrial network protocols, including Ethernet/IP, PROFINET, and Modbus/TCP, for easy integration on the factory floor.
