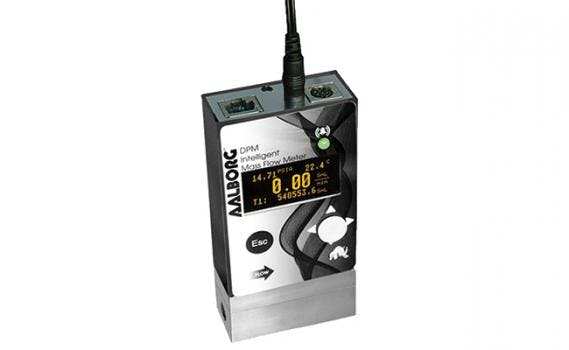

DPM Precision Multigas Flow Meter

May 3, 2018

An intelligent digital DPM precision multiparameter gas flow meter is designed to measure mass flow rates, pressure, and the temperature of clean, non-corrosive process gases. The unit's user-defined mixture functionality allows the creation and the storing of up to 20 custom gas mixes with up to 5 different gases each.


The DPM allows on-site selection of 30 different local gases via the optional OLED/joystick interface or remotely via the RS-232/RS-485 or optional Modbus RTU interface.

  • Multiparameter functionality
  • Support for 90 different gases and gas mixes
  • Create and store up 20 custom gas mixes with up to 5 different gases each
  • <20 ms response time
  • Standard accuracy ± (0.5% RD + 0.2% FS)
  • 200:1 turndown ratio.
  • 2 programmable mass flow rate totalizers
  • User-programmable mass flow rate Pulse Output
  • Self diagnostics with status LED or OLED indication
  • All 3 user-selectable analog output interfaces are standard: 0 to 5 or 0 to 10V DC and 4-20mA
  • 2 digital communication interfaces (RS-232 and RS-485) are standard
  • User-programmable solid-state relay with latch option
  • Universal 9 to 26V DC power supply input
  • Free, easy-to-use configuration and calibration software
