Capacitive Touch Meets Compact Size

April 9, 2018
Visual Communications' touch sensors can be surface or reverse-mounted.

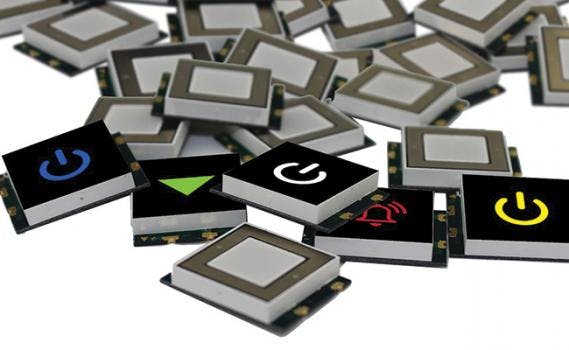

The CSM Series surface mount capacitive touch LED sensor boasts the smallest footprint in the industry as they measure only 15.0 x 15 x 3.2 mm and can be surface-mounted or even reverse-mounted to save additional space on the device — a true asset in smaller handheld devices and equipment where size is a design constraint.



These compact, yet high-output LED sensor displays can be used in a wide range of applications, including: medical devices, home automation and mobile communication devices, as well as portable instruments. As devices become smaller and more intuitive, VCC will continue to lead the way with products that allow designers to elevate the user experience and interface design through smaller, smarter illuminated products.



Available in green, yellow, red, blue and white, the CSM Series enables a fast and intuitive user interface — one that speeds up reaction times and enhances safety by using icons instead of text. Standard icons include: on, off, alarm and arrow, and custom icons can also be created to accommodate any design.



In addition, capacitive touch sensor displays like the CSM Series provide streamlined manufacturing and enhanced product life cycle over a mechanical on/off switch because there are no mechanical components to wear down or break.

Features:

  • SMD touch sensor LED Display
  • Integrated touch sensing and illuminated display technology
  • Robust design due to no mechanical moving parts
  • Simplifies devices design and manufacturing
  • Mounting type: surface mount or reverse mounting
  • Color: super red, white, pure green, blue or yellow
  • Touch sensor: integrated circuit (IC)
  • Available in one standard size: 15.0 x 15.0 x 3.2 mm
  • Uniform illumination and high optical clarity due to LED technology
  • Optional overlay (icons): on/off, arrow, alarm
  • Custom overlay icon can be manufactured upon request – contact VCC
  • Compliant with RoHS and REACH requirements
