All-in-One Captive Locating Screws and Jig Pins

March 1, 2018
Carr Lane Mfg. Co.'s screws and pins are made with spring pressure that holds the products in place.

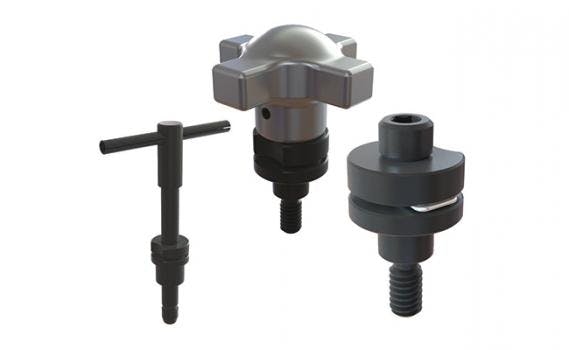

Captive Locating Screws and Captive Jig Pins are quick-acting, all-in-one assemblies to keep all tooling right at hand. Both assemblies have a precision-ground body that is positively retained in a locking bushing, with a spring clip that snaps into the body’s radial groove. In addition, spring pressure holds the products in place, an advantage especially if the fixture is turned upside down while handling.


Captive Locating Screws can be used for locating and clamping in one action, or for clamping only, by selecting the appropriate screw length. Captive Locating Screws are available with a socket head, hand-knob, or swivel-washer hand-knob, each in a wide selection of diameters and lengths. Watch for expanded product offerings later this year.


Captive Jig Pins provide a quick-acting location without clamping and offer positive retention in a locking bushing. These pins are available in several locating diameters and have an integral shoulder to keep the handle raised.
