Gas-Heated, Curing Paint Oven

Nov. 10, 2017
The Grieve Corporation offers their 850°F paint curing oven for facilities.

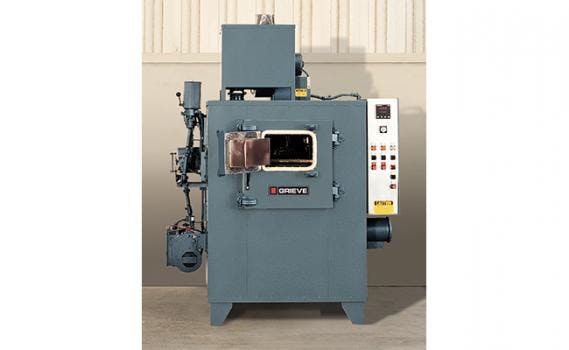

No. 843 is an 850°F (454°C), gas-heated cabinet oven that is currently used for curing paint on steel and aluminum test coupons at the customer’s facility. Workspace dimensions of this oven measure 20 W x 20 D x 20 in. H.  100,000 BTU/HR are installed in a modulating gas burner, while a 600 CFM, ½-HP recirculating blower provides horizontal airflow to the workload.



This Grieve oven has 6-in. insulated walls, an aluminized steel exterior and Type 430 stainless steel interior. The oven features a 12 W x 8 in. H door installed in main door. Additional safety features include those required by IRI, FM and National Fire Protection Association Standard 86 for gas heated equipment, including a 325 CFM, ½-HP powered forced exhauster. Controls on the No. 843 include a digital indicating temperature controller.
