ProSense DP1 Digital Pressure Gauges

AutomationDirect delivers a pressure gauge with a digital readout for ease-of-use.
Aug. 3, 2017
2 min read

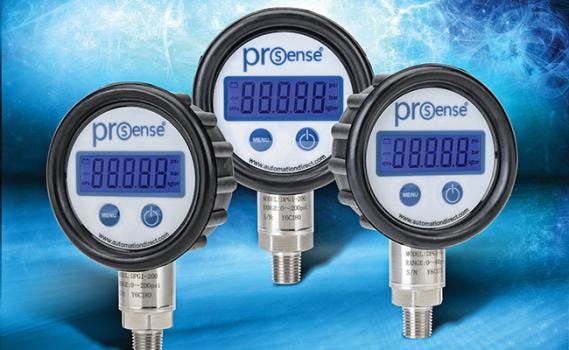

ProSense DPG1 digital pressure gauges are ideal for industrial and general purpose applications requiring an accurate and reliable device with easy to read digital display.



These DPG1 gauges have a 4-digit, 2 in. x ¾ in. LCD display and 2-button operation.  The display can operate in a continuously on mode, or an auto shut-off mode to lengthen battery life and the backlight turns on for 15 seconds whenever the on/off button is pressed.  The gauge is battery powered and battery life is up to 2 years (auto shut-off mode) or 2 weeks if the display is on continuously. A rubber boot is included for added gauge protection and the process connection is ¼ in. NPT.



Gauge accuracy is +/- 0.5% of full scale with available pressure ranges from 0 - 15 psig to 0 - 5000 psig. Pressure unit selections include psi, mH2O, mmHg, mbar, kPa, bar, kg/cm², MPa.

  • +/- 0.5% accuracy
  • 2-button operation
  • Backlight display turns on when on/off button is pressed
  • Option for continuous peak pressure indication
  • Continuous on display option or timeout to save battery life
  • Wide variety of pressure range selections: 15 psig to 5000 psig
  • Reset to zero feature
  • Powered via 2 x AAA batteries (included)
  • Rubber boot for added protection (included)
  • 316L welded diaphragm seal
  • ASME B40.100 compliant
