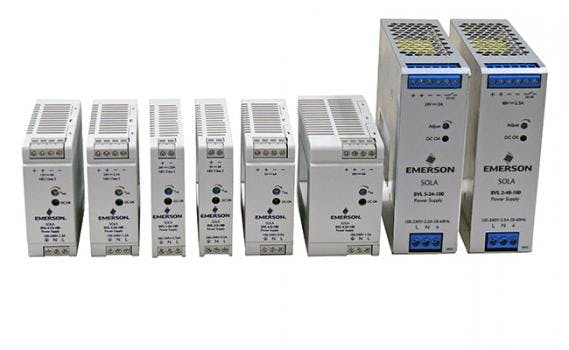

SolaHD SVL Series Power Supplies

July 14, 2017
Emerson has created a high-volume power supply that has all the basic advantages of the one before it.

Designed to deliver all the basic advantages of power quality technology, the SolaHD SVL Series DIN rail power supplies are ideal for high volume, controlled environments where essential features are the sole requirement.


Available in a versatile range of 15 to 480 W in 5, 12, 24, and 48V combinations, the power supplies deliver reliable power in an efficient design. Convection cooling reduces the temperature of internal components without the need for a fan that may serve as a failure point for the device. Further, models above 120 W feature active power factor correction reducing harmonic emissions that can waste energy and affect power quality.


When space inside an enclosure is at a premium, SolaHD SVL power supplies are an excellent alternative to embedded open frame switchers. The clip-on DIN rail mounting capability provides quick, hassle-free installation while allowing for enhanced design flexibility. In addition, the universal input voltage means SolaHD SVL power supplies adapt to locally available power. The screw clamp connections make them exceptionally simple to wire.

Input Voltage, Single PhaseNominal: 100-240V AC. Range: 85-264V ACInput Voltage, Three PhaseNominal: 3 x 400-500V AC (3-phase); Range: 3 x 320-600V AC (3-phase); or 2 x 360-600V AC (2-phase)Input Frequency50/60 HzOperating Temperature-20 to +70°COutput PowerSingle-phase: 15-480 W; Three-phase: 120-960 WOutput Voltage Range5, 12, 24, 48V DC (Three-phase: 24V DC only)Protection CircuitHiccup ModeDiagnostic IndicatorSteady Green LED: DC OKMountingDIN Rail
  • cULus, cRUus, CE
  • Universal input, single-phase, and three-phase models
  • Short circuit, over-voltage, overload, and over-temperature protection
  • Power factor correction
  • Convection cooling
  • Select models are Class I, Division 2 certified for hazardous locations
  • LED to indicate DC OK and protection diagnostics
  • DC OK Relay for single-phase models 120 W and larger
