Rugged Keyboard with Force Sensing Resistor

Jan. 23, 2018
iKey's latest keyboard offers an upgraded pointing device that offers improved sensitivity and increased durability.

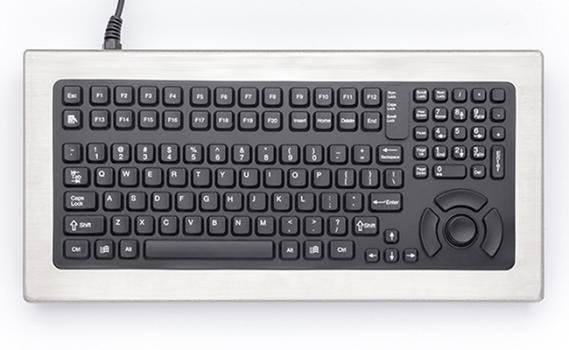

The DT-5K combines a Force Sensing Resistor, an upgraded pointing device that offers improved sensitivity and increased durability, with a 10-key numeric keypad in a ruggedized stainless steel case, providing dual functionality in one compact unit. Its 20 function keys provide user versatility, and also offers user Windows keys for ease of access to the operating system.



CERTIFICATIONSNEMA 4X UL60950, FCC Part 15 Class B
SHOCK3 x 11 ms pulses of 50g on each of 3 axes
CABLELENGTH: 10 feet (3 meters)
DESIGN: "Y" PS/2 Cable (providing separate keyboard and mouse connections), or Single-Cable USB
KEY SWITCHMATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles
TRAVEL: 0.055 in. (1.4 mm)
ACTUATION FORCE: 7.03 oz +/- 1.06 oz (200g +/- 20g)
FEEDBACK: Tactile with mechanical snap
VIBRATIONPOWER SPECTRAL DENSITY: 0.04g/Hz
FREQUENCY RANGE: 20Hz - 2 kHz
DURATION OF TEST PER AXIS: 3 hours
POWERPS/2: KEYBOARD: 35mA@5V (from Keyboard port)
POINTER: 5mA@5V (from Mouse port) USB: 35mA@5V (from CPU port)
COMPATIBILITYPS/2 KEYBOARD/POINTER: All Windows Operating Systems
USB KEYBOARD/POINTER: All Windows and Macintosh OS
TEMPERATURE RANGESTORAGE: -40º to +70ºC
OPERATING: -20º to +60ºC
HUMIDITY100% Humidity Resistant
DIMENSIONS16.25 in. x 7.88 in. x 1.80 in. (w-h-d) 412.8 mm x 200.2 mm x 45.7 mm



Features:

  • 10-Key Numeric Pad
  • 113-Key Functionality
  • 20 Function Keys
  • Integrated Force Sensing Resistor Pointing Device
  • USB and PS/2 Configurations Available
