Steam Vaporizer Systems

Nov. 30, 2005

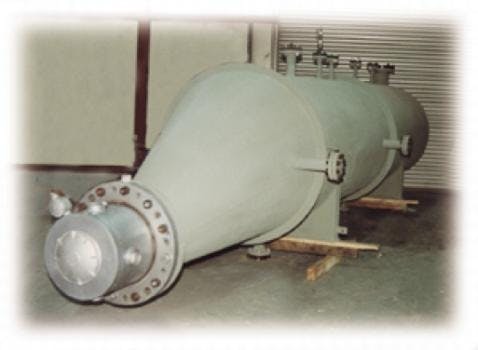

Line of vaporizers are designed for use in process industries such as chemical, petrochemical, textile, and others requiring large amounts of accurately controlled heat (to 750°F) with low operating pressures. Systems can be used with Dowtherm A, Dowtherm J, and Therminol VP-1, as well as ammonia and liquefied gases.

  • All welded construction
  • Low Watt density Alloy 800 heating elements
  • SCR Control panel
  • Inline or Kettle style
  • Heating element over temperature protection
  • Nozzles for level indication, low-level protection, temperature sensors, pressure indication, and PSV

Optional Features:

  • ASME Section VIII Div 1 Certified with National Board Registration
  • Skid Mounting with control panel for easier installation
  • Full instrumentation including level gauge, level transmitter, pressure indicator or transmitter, temperature indicator or transmitter, PSV, and others
  • Nema 7 / Flameproof for hazardous areas

Applications:

  • SCR and SNCR applications for NOx Reduction
  • Ammonia Tank Pressurization
  • Hydrocarbon Distillation
  • Chemical Manufacturing
  • Pharmaceutical
  • Agricultural
  • Heat Transfer Systems
