BEA’s MCLinx Sensor Module Combines Multiple Functions

Jan. 12, 2006

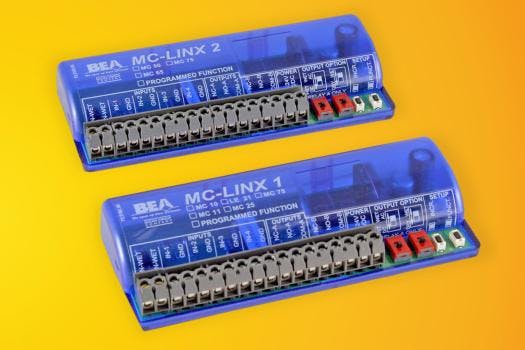

The MCLinx 1 and 2 combine the functions of eight separate units into two, making it easy to select the proper unit for a given application. The functions of the MCLinx 1 include time delay, latching relay, delay module, wet input module, and sensor inhibitor. The functions of the MCLinx 2 include interlock, sequencer, and wet input module.

Both modules have identical features that make installation and maintenance precise, quick, and convenient, including removable screw type terminals for inputs and outputs. In addition, all programming for the units is done via two push buttons; no jumpers are required, and a user-friendly LCD display provides diagnostics and function identification. Unlike traditional sensors, the MCLinx 1 and 2 combine wet and dry input capabilities into single modules.•Description Specification • Supply voltage: 12 to 24 VAC/VDC: +/- 10% • Mains frequency: 50/60 Hz • Power consumption: 50mA max. (triggered and with no load) • Temperature range: -4°F to +131°F • Dimensions: 5.2” (133mm) W x 2.2” (55mm) D x 1” (25mm) H • Housing material: Polycarbonate – Blue Translucent • Input specification: Dry contact input only, except for: • Function 75 Wet Input: 12 to 24 VAC/VDC: +/- 10% • Output specification: Relay Rating: • Max. switching voltage: 125 VAC, 60VDC • Max. switching current: 1A • Max. switching power: 62.5VA, 30W • “WET” Output (at Relay A only): See Section 3 Pre-Installation Tips (User Guide)
