TYPE 1 ABRASIVE WHEELS FOR PARTS REWORK, TOOL AND MOLD REPAIR

Jan. 28, 2006

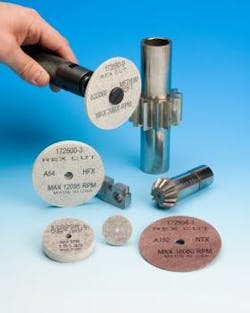

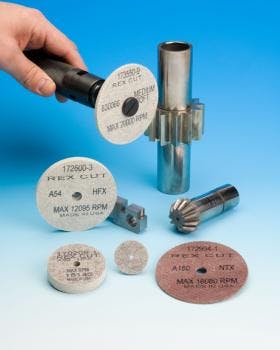

Rex-Cut® Type 1 Abrasive Wheels are constructed from layers of cotton fiber which are impregnated with aluminum oxide or silicon carbide abrasives and then pressed and bonded together and fiberglass reinforced. Lasting up to 3X longer than unitized wheels, depending upon the application, they provide smooth, chatter-free operation and are constantly revealing fresh abrasives.

Designed for use in high speed die grinders, Rex-Cut® Type 1 Abrasive Wheels can grind, debur, and finish in one-step without changing a part’s geometry. They are offered with either a hard or soft bond in coarse, medium, fine, and very fine grits. Sizes available are 2”, 2-1/2”, and 3” dia. by 1/16”, 1/8”, and 1/4” thick and a 1/4" or 3/8” bore.

Rex-Cut® Type 1 Abrasive Wheels are priced according to configuration and quantity. Samples, literature, and pricing are available upon request.• Grain Size • Course: 16, 24, 36 • Medium: 54, 80 • Fine: 120, 180 • Very Fine: 320*
