New Portable Multi-Gas Monitor

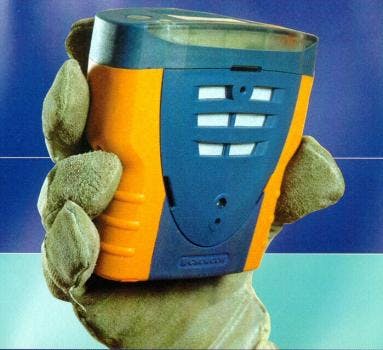

Tetra gives rapid and effective warnings of the presence of gas when hazardous levels are detected. The user is alerted by extremely bright blue and red LED beacons and a powerful 90 dBA alarm. Alarm tones are adjustable to ensure easy discrimination from noisy machinery. An integral vibrating alarm is also a standard feature. Tetra is easily customized for different applications with intelligent, user-changeable sensor modules that are pre-calibrated for a wide range of gases to allow "plug and play" operation. Sensors are available for Oxygen, flammable gas and a full range of toxic gases, including all hazards commonly encountered in confined spaces.

Two versions of the instrument are available including a rechargeable unit using lithium-ion batteries for 12 hours' operation from one charge, and a version powered by three conventional AA alkaline batteries. For testing confined spaces prior to entry, Tetra can be specified with an optional built-in electric sampling pump or used with a separate manual aspirator.• MEASURING PRINCIPLE - Electrochemical sensor • RESPONSE TIME - Less than 8 seconds to full alarm • VISUAL ALARMS CELL FAILURE - (green flashing LED) • WARNING - (yellow LED) • DANGER - (red blinking LED) • AUDIBLE ALARMS - Pulsating Piezo Buzzer (90dB) • AUXILIARY RELAY CONTACT DANGER - DPST 10A@ 125 VAC - Latching • AUXILIARY OUTPUTS - Cell Failure + 12 VDC, WARNING + 12 VDC, • Power Failure + 12 VDC • DRIFT - Less than 2% per month • TEMPERATURE RANGE - 5 o F to 104 o F (-15o C to 40 o C) • HUMIDITY RANGE - 15 to 90% (non-condensing) • POWER SUPPLY - 110 / 220 VAC, 50/60 Hz (specify)Remote Power Transformer • ENCLOSURE - NEMA 4X • WEIGHT - Less than 2 lbs. • DIMENSIONS - 3.6" x 6.0" x 3.5"
