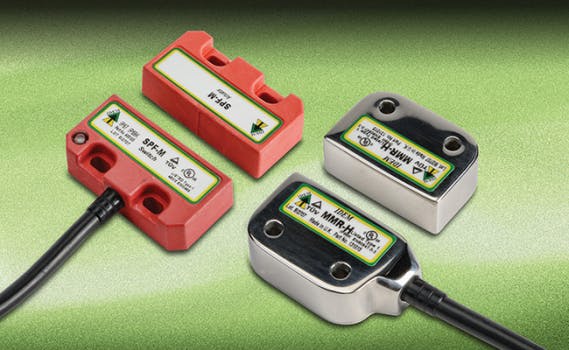

IDEM LPF & SPF RFID Coded Non-Contact Safety Switches

Jan. 5, 2017
Offering of safety products now includes the LPF and SPF-series RFID non-contact RFID coded safety switches.

Offering of safety products now includes the LPF and SPF-series RFID non-contact RFID coded safety switches.



These non-contact safety switches use RFID communication between switch and actuator to provide the most tamper-proof protection using both master and unique coded actuators.



When used in combination with a dual-channel safety relay, RFID-coded non-contact safety switches can be used to provide protection up to Category 4 and PLe to ISO13849-1.

Features:

  • IP69K-rated LPF and SPF-series operate with most safety relays
  • plastic housings
  • wide sensing distances (>10mm)
  • high tolerance to misalignment after sensing
  • switching capability up to 0.2 amp
  • models come in unique-coded and master-coded styles with 2, 5, or 10-m pigtail cables or 250-mm quick-disconnect cable
  •  female quick disconnect cables, in 5 and 10-m lengths
  • replacement master-coded actuators also available
