Thermocouple Amplifier Module

Model TCA-MS-K-1 amplifier module converts the low output voltage signal from a Type K thermocouple probe to a single independent linearized 0 to 5-v dc...
Related To:
Sept. 21, 2016
6667665594f10f0008376502 830 350

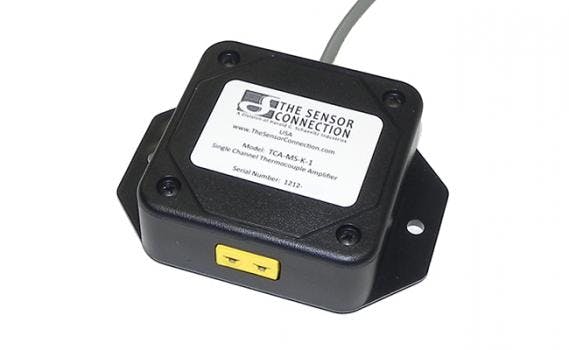

Model TCA-MS-K-1 amplifier module converts the low output voltage signal from a Type K thermocouple probe to a single independent linearized 0 to 5-v dc output voltage. This output is ideal for interfacing to instrumentation equipment including data loggers, temperature indicators, chart recorders, and controllers. A unique feature of this product is the fast dynamic response of 1 ms.

Other features include:

  • Input:  Type K Thermocouple
  • Temperature Measuring Range: 0 to +1,250°C
  • Analog Output: 0 to 5 V DC
  • Supply Voltage: 10 to 32 V DC
  • On-board CJC
  • Response Time:  1 ms
  • Housing is rated IP 51
  • Compact Size, only 2.5" x 2.5" x 0.9"
  • Includes mini-plug signal input connector
  • Includes 1m long integral signal cable
