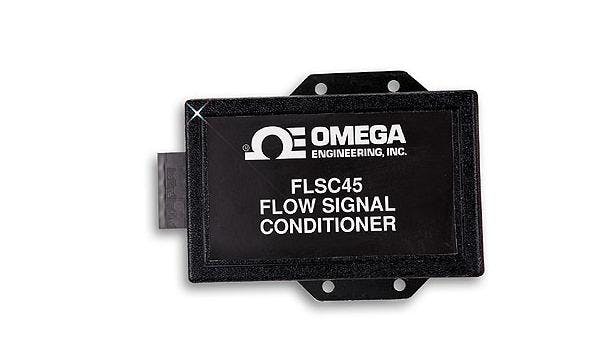

Economical High Performance Flow Signal Conditioners - FLSC-45

April 21, 2006
Omega's FLSC-45 and the new FLSC-45B are DC powered frequency-to-analog output signal conditioners that provide a 4 to 20 mA or 1 to 5 Vdc field selectable output. The high performance electronics accepts a low level magnetic pickup signal or a high level dc pulse from a flow paddlewheel sensor or turbine meter directly with out amplification and converts it into an industry-standard analog output. Both models feature +/- 0.15% of full scale accuracy, operate on 15 to 32 Vdc with .025% repeatability and a ambient operating temperature of 20 to 70°C. The new model FLSC-45B has a rugged NEMA 4 (IP66) enclosure and is CE approved. The FP7001 flow paddlewheel sensor is recomended. Price starts at $225.* Accuracy: ±0.1% of full scale * Repeatability: ±0.025% * Input: Sine wave 20 mV pp min * Output: 4 to 20 mA or 1 to 5 Vdc field selectable * Response Time: 2 sec fixed * Frequency Input Range to Achieve FS Output: 65 to 7600 * Power: 10 to 32 Vdc for 4 to 20 mA and 15 to 32 for 1 to 5 Vdc output * Operating Temperature: -20 to 60°C (-4 to 140°F) * Storage Temperature: -25 to 70°C (-12 to 158°F) * Dimensions: 61 H x 104 W x 25.4 mm D (2.4" x 4.1" x 1") * Weight: 96 g (3.3 oz)
