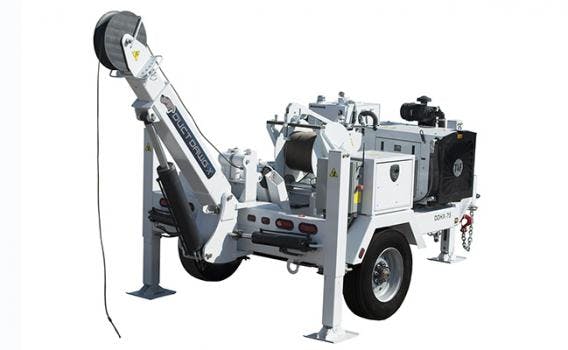

Redesigned Duct Dawg X underground puller comes with either a 7,500 or 10,000-lb pull capacity for underground cable installations.
Unit has wire technology through a remote control that allows operator full location flexibility. This also lowers the risk of "touch potential" helping protect operator from electrical shock if pulls are in proximity to energized environments. A three-speed gearbox allows for smooth operation with potential pulling and payout speeds between 0 to 120 fpm and an on-demand payout of up to 285 fpm.
Duct Dwag X puller features:
- improved setup and maneuverability
- more compact footprint
- accurate, real-time display readouts of machine status
- full-articulating, self-supported 3-axis boom capable of an over 55-deg swing arc (left or right); 85-deg vertical arc (up or down); and 24-in. telescoping (in or out)
- 17-in. sheave can swivel 30 deg
