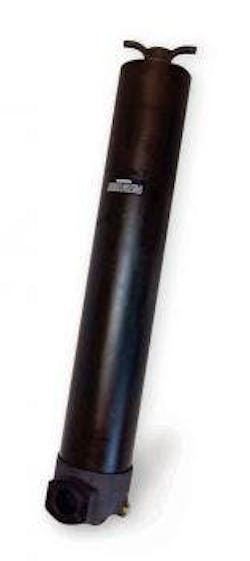

Stauff Corporation introduces the RIF300 series of return line filters for inline hydraulic applications. Stauff’s RIF300 series of return line filters provide a highly effective and efficient solution for contamination removal. In-line assembly Flow rating up to 1135 I/min (300 US GPM) for 32 cSt (150 SUS) fluids Maximum working pressure of 34.5 bar (500 psi) Minimum burst pressure of 103 bar (1500 psi) Temperature range of -29°C to 107°C (-20°F to 225°F) Bypass valve allows unfiltered oil to bypass the contaminated element once the opening pressure has been reached SAE Code 61 flange port connections Stauff’s RIF300 series of return line filters are competitively priced and in stock for immediate delivery. For complete product information, contact Stauff Corporation, 7 Wm. Demarest Place, Waldwick, NJ 07463. Phone: 201-444-7800. • Construction In-line assembly • Filter head and cover Anodized aluminum • Element case Plated Steel • Seals O-rings NBR (Buna-N®) FPM (Viton®) • Port connections SAE Code 61 ?ange • Operating Pressure max 34.5 bar (500 psi) • Burst pressure min 103 bar (1500 psi) • Temperature range -29°C to 107°C; (-20°F to 225°F)
