PX309 Series General Purpose Pressure Transducers

Aug. 31, 2006

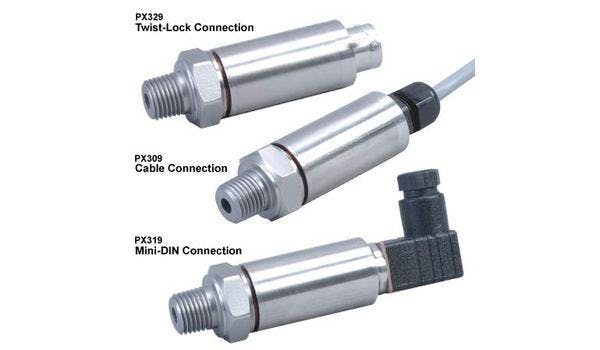

Employing the latest aerospace silicon technology, the PX309 Series pressure transducers from OMEGAâ deliver superior accuracy at competitive prices. With a choice of absolute pressures from 5 to 300 psi, gage pressures from 1 to 10,000 psi, and 3 output ranges-0 to 100 mV, 0 to 5 Vdc, and 4 to 20 mA-these transducers are compatible with most process-control equipment. The oil-filled, all stainless steel construction provides the durability needed for industrial applications. Three connection styles are available: 1.5 m (5') cable, mini DIN (mating connector included), and military-style twist-lock.• 5-Point NIST Traceable Calibration Included • Low Pressure Ranges, 1,2 and 5 psi • Engineered Ranges from 1 psi to 10,000 psi • Gage and Absolute Pressure Ranges • Rugged All Stainless Steel Construction • State-of-the-art Silicon Technology • High Stability, Low Drift • High Accuracy --- 0.25% Typical • Premium Temperature Compensation • IP 65 Environmental Protection • Three styles to choose from PX309 Cable Connection PX319 DIN Connection Style (mating connector included) PX329 Twist Lock Connection (mating connector sold separately)
