VENTURI FLOW METERS BUILT FOR LARGE APPLICATIONS

March 13, 2007

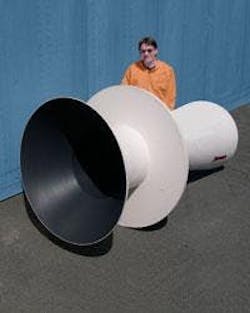

A full line of corrosion-resistant venturi flow meters for use with a wide range of line fluids, pressures, and temperatures are being introduced by Westfall Manufacturing Company if Bristol, Rhode Island. Westfall 2300 Series Venturi Flowmeters are made from corrosion-resistant epoxy vinyl ester fiberglass or stainless steel for insertion within a pipe line to measure the flow rate of various fluids at temperatures up to 350°F, depending upon the specific resin. Featuring no moving parts, these differential producing venturi tubes can be fabricated in sizes up 120” dia. and provide at least ±0.75% accuracy. Capable of handling large flow volumes at low pressure drops, Westfall 2300 Series Venturi Flowmeters have a short laying length design with high accuracy and low permanent pressure loss, and can be installed in large diameter pipelines between ANSI flanges. The flow conditioning within the inlet section allows for closer coupling with the upstream fittings. Westfall 2300 Series Venturi Flowmeters are priced according to size and configuration; offered in sizes for piping from 3/4" to 120” dia. Literature and price quotations are available upon request. • Material: • with 150 Carbon Steel Flange • Size: • 30" Pipe 12.960" Throat • Application: • Water metering
