ML-Z 9500 Series 3-axis Motion Control Laser Marker
⚠️ Editor's Note: This product has been discontinued and is no longer available. It has been succeeded by newer models in the ML-Z line. Visit Keyence for more information. This page is for reference only.

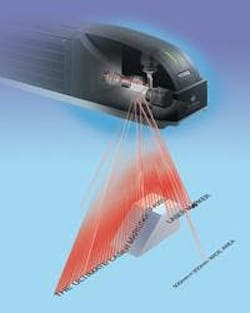

The ML-Z 9500 Series high-speed, high-quality CO2 laser marker has the ability to mark not only in the X and Y direction, but also in the Z direction. This unique 3-axis motion allows for a multitude of advantages, such as a 42 mm variable focal length, a distortion-free 300 x 300mm marking area, and the ability to clearly mark on difficult shapes (cylinders, cones, inclined planes, and spheres).
The 3-axis motion of the ML-Z allows for outstanding visibility on deformed or curved surfaces. Marking on inclines, cylinders, or circular cones at speeds up to 12,000 mm/s is now possible without compromising character clarity.
With the ML-Z’s variable focal length, maximum spot position can be set at any focal length within a 42 mm range. This range of focal length significantly reduces installation time and cost by eliminating the need for a mechanical stage that adjusts during product changeovers, or when it is necessary to mark products of varying heights.
The 300 x 300 mm wide marking area of the ML-Z is the largest in its class. Marking in large areas often requires moving a target workpiece using an X-Y stage, or switching the lens on a conventional laser to create a wide marking area. Using an X-Y stage increases integration costs and time, and also decreases product throughput. A wide area lens can help with these problems; however, characters are often displaced or blurred at the edge of the marking area.
The ML-Z series utilizes a special lens system along with its unique 3-axis control to create this highly accurate 300 x 300 mm wide marking area, eliminating the need for mechanical adjustment while maintaining character integrity. The spot size remains constant over the entire marking area due to the removal of the F-Theta lens, resulting in clear and crisp characters over the entire marking area. The shortened wavelength version of the ML-Z is ideal when marking on transparent or translucent products. The wavelength of the laser beam has been reduced from 10.6 to 9.3 µm in order to match the heat absorption characteristics of plastics. The 9.3 µm short pulse width laser clearly marks highly visible characters in shallow incisions with fewer edges, guaranteeing high quality in marking and processing.
