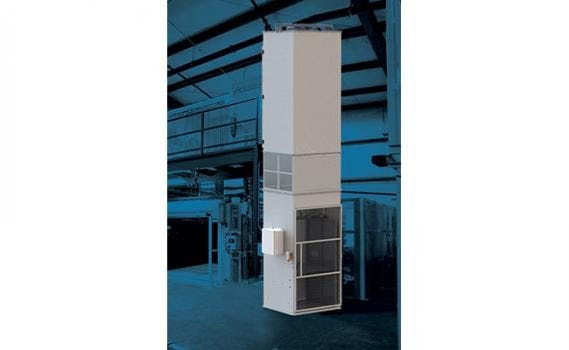

TL-M Series VRC Lift

Jan. 23, 2009
Custom Industrial Products' modular VRC lift Integrates seamlessly into existing workflows.

The TL-M Series VRC Lift features a unique modular design that offers reduced installation time while providing a reliable and affordable means of transporting material between two levels. The all-mechanical design reduces noise and maintenance while providing a chemically clean workplace.


Available with a standard carriage size of 36 W x 36 L x 66 in. H, the series offers load capacities up to 350 lb., travel heights from 8 to 15 ft, dual loading heights of 3 or 33 in., and single or three-phase power.

  • Modular Design
  • Ideal for lighter, more compact loads
  • Typically used for boxes, carts, barrels, tires, parts, etc.
  • Minimal installation time
  • Maximizes floor space
  • Lowest cost of ownership
  • Simple operation and intuitive controls
  • Meets safety standards
  • Seamless integration into existing workflow
  • Factory-tested
  • Top-mounted drive system
  • Illuminated operator controls at each level
  • Quiet and efficient operation
  • Full-height carriage enclosures
  • Dual loading heights option available
  • Factory pre-wire
Lifting Capacity500 lb. (226 kg)Carriage Size (W x D)3 x 3 ft (1 x 1 m)Travel Height8 to 16 ft (2.4 to 4.9 m)Speed15 to 20 ft/min (4.5 to 6 m/min)Number of Levels2Load/Unload Config.C or Z patternPower220V/1P/60 HzMountingSurface or PitMax. Load Height66 in. at full (30 in. with optional shelf) (1.6 m or 762 mm)Ground Loading Height1 ½ in. (31 ½ in. with optional shelf mount) (38 or 800 mm)Gate Config.Single swingColorSilver gray
