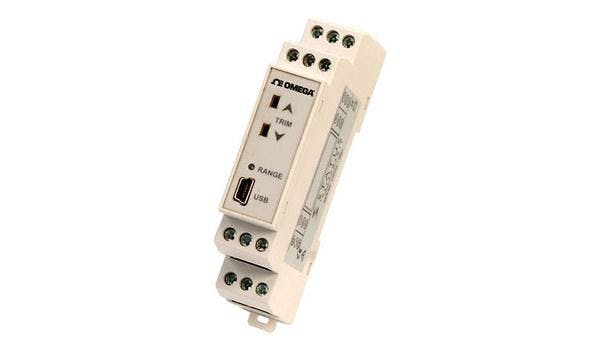

Omega's TXDIN1600 series is a new generation DIN rail mounted temperature transmitter. It has been designed to accept most common process and temperature sensor inputs and provide the user with a standard two wire 4 to 20 mA output signal. This CE compliant product is perfect for automotive, food, water, and any temperature or process industry. Ideal for food processing, HVAC, lab use, or any temperature monitoring application.* Isolation: Input to output tested at 500 Vdc * Ambient: Operating -20 to 70°C (-4 to 158°F) 10 to 95% RH non-condensing * Storage: -40 to 85°C (-40 to 185°F) * Approvals: CE tested to BS EN 61326 * Dimensions: 17.5 W x 56.4 L x 90 mm H (0.7 x 2.2 x 3.5") * Material: Polmide 6.6 * Self Extinguishing Terminals: Screw terminal * Cable: 2.5 mm (0.1") max * Color: Gray Output
