Sealed High-Torque Clutches

April 16, 2009

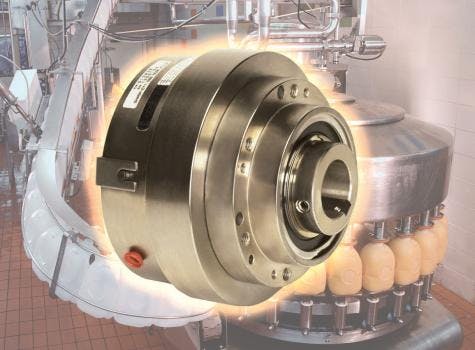

Nexen 5H Series Tooth Clutches deliver fast, no-slip engagement for washdown applications where high torque is required. The completely enclosed tooth clutches provide positive torque transmission and feature a nickel-plated exterior and rotary seal to withstand wet, corrosive environments common to food and beverage processing applications. The 5H Series Tooth Clutch models offer positive, single-position tooth interface for synchronized engagement and feature a torque range of 500 to 12,000 in.-lbs.—with instantaneous torque at engagement up to 7,100 in.-lbs. The nickel-plated exterior and rotary seal meet NEMA 1.26.5 water protection standards. Flexible 5H Series Tooth Clutches are compatible with timing belt sprockets, chain sprockets, belt pulleys or couplings for use in a broad range of applications. Tooth clutches can be simply flange- or pilot-mounted and are controlled with a 3-way, solenoid, pneumatic valve. Optional solid-lube and/or stainless steel bearings are available, as well as optional single- or double-flex, nickel-plated couplings with high-misalignment capabilities for in-line shaft connections. * Mounting on driving or driven shaft * Bearing mounted piston, air inlet does not rotate! * Torque proportional to control pressure
