Continuous flexing control cable is designed to be exposed to constant flexing during their operation & withstand millions of these flex cycles.

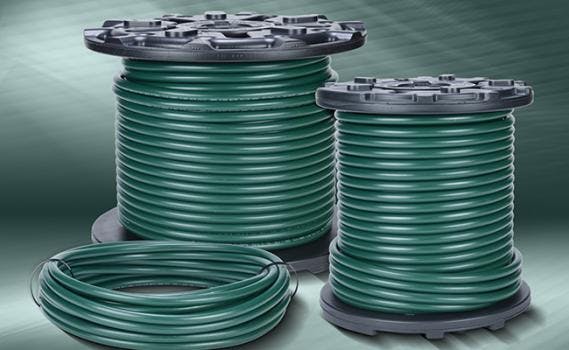

CF5 and CF6 multi-conductor control cables from igus are specifically designed, tested, and manufactured for continuous flexing, high mechanical load application requirements, and will provide a guaranteed service life between 5 million and 10 million cycles when operated within specified conditions. igus Chainflex cables are available with 3 to 25 unshielded (CF5 series) or 4 to 12 shielded (CF6 series) conductors in 20 AWG to 14 AWG sizes. Chainflex cable is sold in 20, 50, 100, 250, and 500 ft lengths.
Chainflex individual conductors are bare copper and stranded for flexing applications. Conductor insulation is high-quality black TPE mixture for 20AWG and black PVC mixture for 18 through 14 AWG. Individual conductors are marked with white numbers for easy identification and a ground conductor with green-yellow insulation is included in each cable. Cable outer jackets are a low-adhesion pressure extruded PVC mixture that is resistant to sunlight, oil penetration and is flame retardant.
Chainflex cables have a unique tear strip underneath the outer jacket (unshielded) or underneath the inner jacket (shielded). The jacket can be opened like a zipper to the desired length by pulling on the special tear strip and the outer jacket/inner jacket removed from conductors. The tear strip saves time and effort for electricians and assemblers, and reduces the requirement for additional stripping tools.
Features:
- 0.5 mm2 to 2.5 mm2 (20 AWG to 14 AWG), 3 to 25 conductors including ground
- Unshielded and shielded constructions
- Individual conductors have black TPE or PVC insulation and are marked with white identification numbers
- Low adhesion pressure extruded PVC mixture outer jacket that is sunlight and oil resistant and flame retardant
- Green/yellow ground wire included
- Rated for continuous flexing applications with high mechanical load requirements
- Guaranteed service life between 5 million and 10 million cycles when operated within specified conditions
