GT34XX Compact Size Pressure Transducers
⚠️ Editor's Note: This product has been discontinued. This page is for reference only.

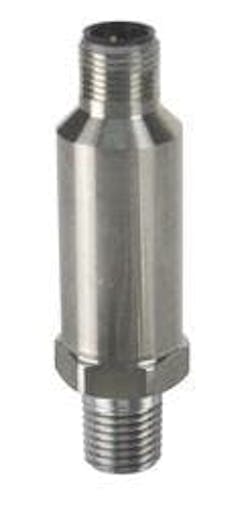

Stellar Technology's new Series GT34XX pressure transducers offer superior price/performance value for high volume and OEM applications. The Series GT34XX pressure transducers maintain STI's commitment to high reliability with their solid stainless steel construction and proprietary sensor technology.
The sensing element consists of a sputtered thin film bridge network and a unique isolation layer that protects the strain gages. This special design provides a rugged package for harsh environment applications.
Pressure ranges for the Series GT34XX pressure transducers start at 300 psig and extend to 15,000 psig. The internal signal conditioning electronics are industrial grade and EMI/RFI protected. Standard analog outputs are 4-20 mA, 0 to 5V DC, 1 to 5V DC, 0 to 10V DC, and 1 to 10V DC. The standard digital output is CANopen.
Standard compensated temperature range is -15°F to 185°F. Standard pressure ports are ¼ NPT male and G ¼ male, and the standard electrical receptacle is a M12x1.
Typical applications for the Series GT34XX pressure transducers are industrial and automation control systems, compressor control, pump monitoring, natural gas systems, robotics, industrial OEM equipment, generator sets, wind turbines, off-highway & agricultural equipment, and HVAC systems.
Series GT34XX pressure transducers range in price from $138/ea in quantities of 500 or more to $195/ea for quantities of 1 to 50 units.
Features:
- Static Accuracy: ±0.5% FSO by BFSL
- Repeatability: ±0.05% FSO
- Proof Pressure: 2.0 X range
- Burst Pressure: >8X nominal pressure (max 60,000 psi)
