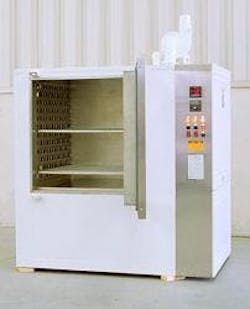

Series CLD is a new line of standard electrically-heated cabinet ovens from Grieve, specially designed for use in a Class 100 cleanroom environment. They are typically utilized for drying coatings onto printed circuit boards. The unit shown has a maximum operating temperature of 260°C (500°F) and workspace dimensions of 36? W x 36? D x 39? H. (Other capacities are available.) A 20 KW total heat input is installed in Incoloy sheathed tubular heating elements. A 10000 CFM, 1-1/2 HP recirculating blower provides horizontal airflow across the workload, inside 4? insulated walls. This Grieve Class 100 cleanroom oven features a Type 304, 2B finish stainless steel interior, with continuously welded seams, a #4 brushed finish stainless steel door cover and control panel face plate, an exterior finished with white epoxy paint and all safety devices required for handling flammable solvents, including explosion-venting door hardware. This oven includes a 30? x 24? x 6? thick stainless steel high-temperature HEPA recirculating air filter. In addition, Grieve equipped this unit with a digital indicating temperature controller and SCR power controller.• Approx Shipping Weight : 72 lbs
