CONTACTRON Speed Starter

Phoenix Contact's CONTACTRON Speed Starters are available in a range of options with performance classes between 0.25 and 1.5 kW.
Related To:
Dec. 8, 2021
2 min read
© Phoenix Contact

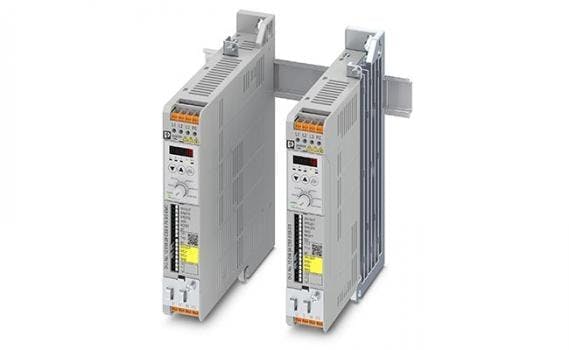

CONTRACTRON Speed Starter

Bridging the gap between motor starters and variable frequency drives, the CONTACTRON Speed Starter offers the critical functions common in a variable frequency drive (VFD) without the complexities. The device requires no drive expertise or software.

The Speed Starter provides ramp-up and ramp-down functions while the motor is under load. Unlike a traditional motor starter, it offers two independently settable operating speeds. The intuitive keypad and rotary knob allow commissioning in just minutes. Digital inputs activate user-settable output speeds, so it can be used in place of a traditional across-the-line starter while offering drive-like functionality.

The Speed Starter also streamlines safety. The integrated Safety Torque Off (STO) feature has emergency stop capabilities up to SIL 3/PLe when used with a suitable safety relay or safe PLC.

The Speed Starter is ideal for intralogistics applications such as conveyors and material handling systems. The two speeds allow acceleration/deceleration between two points, different forward and reverse speeds, or simple use of the ramp function to avoid toppling product or shock-loading gear drives. It can also optimize motor speed to save energy and improve flexibility.

Features:

  • Quick installation and startup with easy wiring and intuitive operation concept
  • Safe shutdown with the integrated Safe Torque Off (STO) function
  • Save space in the control cabinet with the compact design and width starting at only 1.4 in. (35 mm)
  • Cost-effective solution with all functions necessary for different speeds and soft start

Phoenix Contact
Middletown, PA
(800) 888-7388
[email protected]
www.phoenixcontact.com
