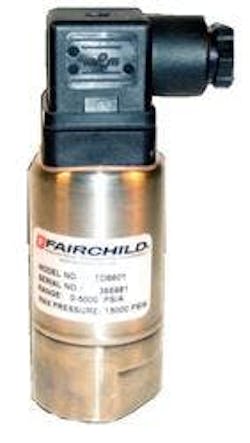

Fairchild Industrial Products’ new rugged precision P/I pressure transmitters are designed for use in either pneumatic or hydraulic systems in the toughest environments man or Mother Nature can dish out. The TD8600 series offers 0.5% accuracy in a rugged machined stainless steel, laser welded, hermetically sealed housing. It is designed for harsh applications such as Tire Manufacturing, Pulp & Paper, Test Equipment and Factory Automation. For applications requiring higher accuracy, Fairchild’s new TA8800 series offers 0.2% or better accuracy in a similar Stainless Steel housing, with a wide variety of available options such as special electrical connectors, optional pressure ports, temperature compensation and exotic wetted materials. The TA8800 has become widely accepted for Oil & Gas Applications, as it carries full approval from FM, CSA, ATEX and other organizations. Fairchild delivers high performance in our compact pressure transmitters to meet your application needs.• Non-linearity (Best Fit Straight Line) - ? ± 0.5% FSO • Hysteresis and repeatability - ? ± 0.3% FSO • Full Scale Output (FSO) - TD8501: 5 VDC ± 3% @ 70°F (21°C); TD8502: 16 mA ± 3% @ 70°F (21°C) • Long Term Stability - ? ± 0.5% FSO per 6 months • Compensated Temperature Range - 70°F to 170°F (21°C to 76°C) • Maximum Operating Temperature Range - 200°F (93°C) Process • Minimum Operating Temperature Range - -20°F (-28°C) • Non-Operating Temperature Range - -60°F to +250°F (-51°C to 121°C) • Thermal Effect on Zero - ? ± 3% FSO per 100°F (37°C) typical • Thermal Effect on Span - ? ± 2% FSO per 100°F (37°C) typical
