Versatile, Multi-Pin Molded Connectors

Aug. 21, 2010

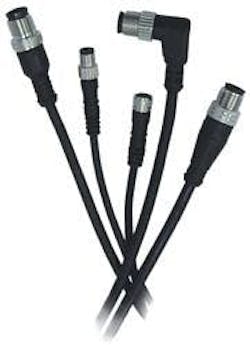

Canfield Connector’s M8 and M12 multi- pin molded connector series for sensors and automation offers the highest quality standards and an affordable price. The industry standard M8, Pico, straight locking connector is available with either 3 or 4 poles, has a nominal voltage rating of 120 V AC/DC, a current rating of 4 amps and 24 AWG wire gauge. The M12, Micro, is available as either a straight or 90° locking connector with 3, 4, or 5 poles.  The 3 and 4 pole versions have a nominal voltage rating of 240 V AC/DC and a 4 amp current rating while the 5 pole is rated 120 V AC/DC with a 3 amp current rating.  Both the M8 and the M12 have a nylon housing, black PUR or PVC cable, are IP67 environmentally resistant and have a temperature rating of -25° to +85°C.
