SS1500 Stainless Steel Manual Rewind Reels

Aug. 10, 2010

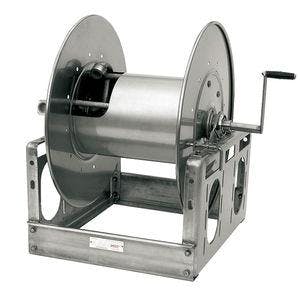

Hannay Reels’ SS1500 Series stainless steel hose reel is specifically engineered to offer protection against contamination and corrosion. It offers numerous uses in industrial, chemical & food processing, marine, and off-shore settings or any harsh or caustic environment. Typical applications include pressure washing, steam cleaning, sanitizing, and pest control. The SS1500 is rust-resistant and paint-free to prevent corrosion from chipping and is constructed of fine grade 304 stainless steel frames, discs, and drums. It can handle single hose from 1/4 to 5/8-in. ID, operates at pressures up to 3,000 psi, and features a direct crank manual rewind that is permanently attached to the reel axle.

  • Lightweight, compact reels designed for long lengths of hose.
  • Manual rewind includes: cam-lock drag brake, spring actuated pin lock and direct crank rewind.
  • Standard inlet: 90-deg. stainless steel ball-bearing swivel joint, 1/2" female NPT threads.
  • Standard outlet: 1/2" female NPT threads.
  • Rollers and roller mounting brackets are accessory items. Specify roller position.
  • Pressures to 3,000 psi (207 bar)
  • Fluid temperatures from +32 to +400°F (0 to +204°C).
  • 304 stainless steel construction.
