Compact Open Channel UV Water Disinfection

Jan. 10, 2011

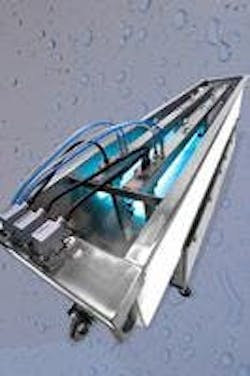

Supplying environmentally safe treatment of effluent before it’s released into the environment, Aquionics introduces the OpenLine UV disinfection system. The unit minimizes the impact that municipal and industrial wastewater treatment facilities have on local ecosystems.

 Using open channel, low pressure, high output UV amalgam lamps, the OpenLine destroys microorganisms’ reproductive abilities on a cellular level. Treated effluent is free of residual chemicals and can be safely passed into the environment, without the risk of pollution.

The OpenLine is available in eight models, for treatment flow ranges from 15 to 1400 gallons per minute. The compact system offers a smaller footprint than similar products, with only one power source required. The unit’s UV lamps feature a 14,000 hour lamp life guarantee and an automatic quartz sleeve wiping system for reduced maintenance and optimal performance. OpenLine’s control unit comes with a lamp hour counter and status monitoring as standard. To accommodate future flow increases, the system can be expanded with additional UV modules without replacing the current UV channel and components.

Additional UV modules can be added to smaller models without replacing the UV channel or other components. This allows customers to expand their unit if their future flows increase.

  • high output UV amalgam lamps
  • destroys microorganisms’ reproductive abilities
  • available in eight models
