SureServo™ AC Servo Systems - Motors and Drives
Jan. 12, 2011
Related To:

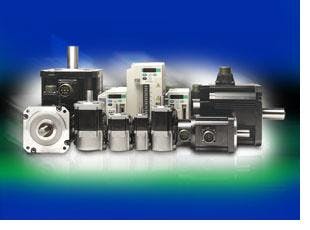

The AutomationDirect SureServo family of brushless servo systems is fully digital and offers a rich set of features to cover a broad range of applications. There are eight standard permanent magnet servo motors that can be operated in combination with one of three standard servo drives.
Eight standard systems from 100W to 3kW
Use with DirectLOGIC PLCs or any other host controller
Drives feature on-board indexer and adaptive tuning modes
Free setup software - download at: www.SureServo.com/downloads.htm
30-day money-back guarantee
Two year warranty
Why Use a Servo?
The SureServo servo systems provide the highest possible level of performance for precise control of position, velocity, and torque. Compared to lower cost stepping systems, the SureServo products provide:
More torque at higher speeds (up to 5,000 rpm)
Broader range of power (up to 3kW)
Higher response with closed-loop control (high hit rate without stalling or lost position)
SureServo™ Family
The SureServo family is designed for flexibility and quick implementation. SureServo drives accept a wide range of command sources:
Built-in motion controller w/preset position, velocity or torque
Select presets with switch inputs and/or the multi-drop Modbus serial interface
Position commands with “pulse and direction” or “count up and down” format
Analog voltage Velocity or Torque command
Encoder follower
For configuration, tuning and diagnostics,
use the drive’s integrated keypad /display
or take advantage of the free SureServo Pro™ PC-based software.
Tune the system easily with adaptive auto-tuning selections or a manual mode.
Adapt to diverse applications with configurable I/O, including
eight digital inputs,
five digital outputs,
two analog monitors
and a scalable encoder output.
