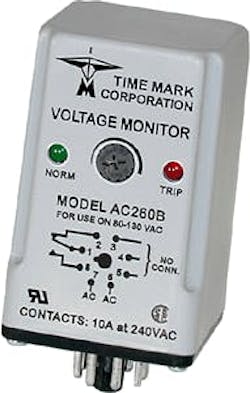

    The Model 260 Voltage Sensor is a single set-point voltage sensor. Input voltages above the set-point cause the output contacts to energize (contacts 1 & 8 closed). Input voltages below the set-point cause the output contacts to de-energize (contacts 1 & 2 closed). The dead band between pull-in and drop-out is less than 2%.

    The standard unit has a screwdriver, or fingertip adjustable set-point range of approximately 35%. of the maximum voltage. This device can also be provided with a factory calibrated trip point.

    AC versions of the Model 260 Voltage Sensor are not frequency sensitive, and may be used in systems from 50 Hz to 400 Hz. DC models are not polarity sensitive. This device requires a standard 8-pin socket, such as Time Mark's Model 51x120.

    Model

    260

    Input Voltage

    *see Ordering Info tables below

    Transient Protection

    2500VRMS for 10msecs

    Polarity Protection

    Not Required

    Supply Current

    10mA max.

    Setpoint stability

     ±1%

    Response Time

    100 msecs

    Operation

     Continuous duty

    Output Contacts

    SPDT 10amps at 240VAC resistive

    Expected Relay Life Mech:   10 million operations
    Elec:     100,000 operations at rated load
    Operating Temp

    - 40º to +131º F

    Humidity Tolerance

    0-97% without condensation

    Enclosure Material

     ABS Plastic

    Mounting

    8-pin socket (**order separately)

    Weight

    3 oz.

    Agency Approval

     Most AC & DC Auto Reset versions:  UL Recognized* and CSA Certified*

    *Condition of Acceptability:
    Units receiving input voltages of 300 volts or more must use a UL Recognized 600V socket, like Time Mark's 8-pin Model #51X120.

    *Exception:
    Models listed with # do not have agency approval.




    ORDERING STANDARD MODELS:

    <>



     AUTOMATIC RESET

    AC

    DC

    AC260B-80-130

    DC260B-20-24

    #AC260B-90-150

    DC260B-30-46

    AC260B-160-250

    DC260B-42-64

    AC260B-215-290

    DC260B-60-92

    AC260B-380-480

    DC260B-90-150

    #AC260B-400-560

    DC260B-160-250



    #DC260B-250-350

     MANUAL RESET

    AC

    DC

    AC260BM-80-130

    DC260BM-20-24

    #AC260BM-90-150

    DC260BM-30-46

    AC260BM-160-250

    DC260BM-42-64

    AC260BM-215-290

    DC260BM-60-92

    AC260BM-380-480

    DC260BM-90-150

    #AC260BM-400-560

    DC260BM-160-250



    #DC260BM-250-350





    ORDERING NON-STANDARD VERSIONS:
    Voltage Model Adjustment Reset Setpoint or Range
    DC
    AC         		260 A=factory calibrated
    B=screwdriver adjust     		M=manual reset or auto reset is assumed xxx OR
    xxx-xxx
    Example:  AC260 AM 230
    orders an AC voltage sensor with manual reset, factory calibrated to trip at 230VAC
