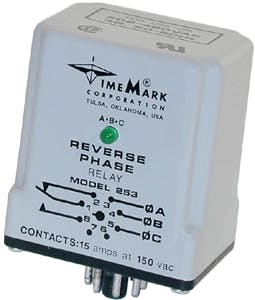

The Model 253 Reverse Phase Relay is a solid-state sensing device designed for installation in equipment using 3-phase power. This unit is used where it is desirable to have a contact closure indicating that the proper phase rotation sequence has been applied.
The relay closes when the proper sequence (ABC) is applied, but will remain open if any two phases are reversed. If reverse phasing occurs during operating, the relay also de-energizes.
The Model 253 has a special industrial-grade relay designed for low power consumption. The ABC indicator will be illuminated when the proper phase rotation sequence is applied.
| Model | 253 |
| Nominal Voltage | 208 - 480 VAC |
| Operating Range | 190 - 480 VAC |
| Frequency | 50 to 60 Hz |
| Power Consumption | 2W per phase |
| Transient Protection | 2500V for 10 msec |
| Repeat Accuracy | ± 0.1% |
| Response Time | .05 seconds |
| Reset Time | .05 seconds |
| Reset Type | Automatic |
| Dead Band | Approximately 2% |
| Output Contacts | SPDT 10A at 240 VAC resistive |
| Expected Relay Life | Mech: 10 million operations |
| Operating Temp | - 40° to +131° F |
| Humidity Tolerance | 0 - 97% w/o condensation |
| Case Material | ABS Plastic |
| Mounting | 8-pin socket *(order separately) |
| Weight | 6 oz. |
| Agency Approval | UL Recognized and CSA Certified |
