Screw Feeder Combines Functionality and Affordability

Jan. 30, 2018
Scaletron Industries, Ltd. offers a screw feeder achieves feed rates of up to 10.19 cu. ft. per hour.

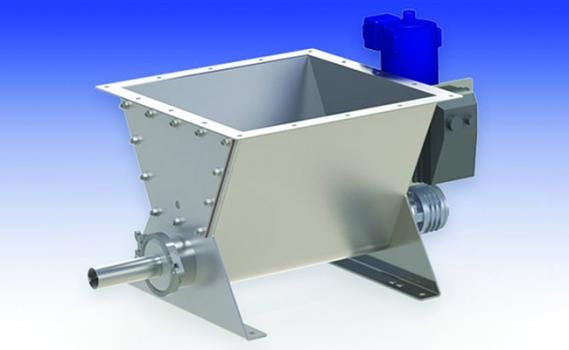

Model VMF-90A Volumetric Screw Feeder is designed for automated additive dosing in water and chemical treatment processes. The new feeder retains the functionality and user friendly features of the popular VMF-28 feeder, but has been re-engineered for cost-savings and versatility.


For feeding dry powdered or pelletized materials, the VMF-90A feeder achieves feed rates of up to 10.19 cu. ft. per hour. The Scaletron unit uses gravimetric feeding enhanced with a built-in mechanical, cam actuated hopper agitator. The agitator continually conditions the material being added to promote uniform flow, a feature that is particularly useful when working with materials than tend to clump. If additional agitation is needed, Scaletron can add on an external vibrator.


Scaletron offers an optional “loss in weight" weighing system for applications where enhanced precision is required. This option comprises an integrated precision Scaletron scale utilizing four load cells and a Scaletron Model 1020-B digital scale controller. Scale accuracy is to within 1.0% of volume and 0.25% of weight. With this option, weight loss or gain is monitored in real time. Changes to an additive’s mass due to heat, moisture and other environmental variables, are detected and accounted for when metering and dispensing begins. Precise dosage amounts are then automatically adjusted to improve the accuracy of the feeding process.


With a corrosion resistant stainless steel frame, the VMF-90A feeder is rugged and durable. The stainless steel hopper has a capacity of 1.5 cubic feet. A stainless steel auger (0.50, 0.75 or 1.5 in. diameter) with bayonet style connection enhances a steady feed rate. The VMF-90A feeder is water and dust proof and controls are housed in a NEMA 4X, UL-approved enclosure. The 90 VDC motor is right-angle geared and wash down ready.


The VMF-90A feeder is readily adaptable to small treatment systems being loaded from bags, or to large water treatment plants that load from super sacks or silos. The new Scaletron unit is designed for fast, easy attachment of accessories using Scaletron’s quick-clamp design. The VMF-90A is fully compatible with Scaletron’s line of digital indicators and controllers. Among the numerous modular add-ons and accessories are FBIC bulk bag unloaders, 316 stainless steel or dry powder epoxy coated carbon steel construction, 316 stainless steel augers and overwind helix augers, SCADA programmable and HMI PLC touch screen motor controllers, dust collectors, feeder stands and more.
