Taurus Series Double Block Bleed Piping Ball Valves

June 5, 2018
AS-Schneider's valve series is available in a floating ball or trunnion ball design.

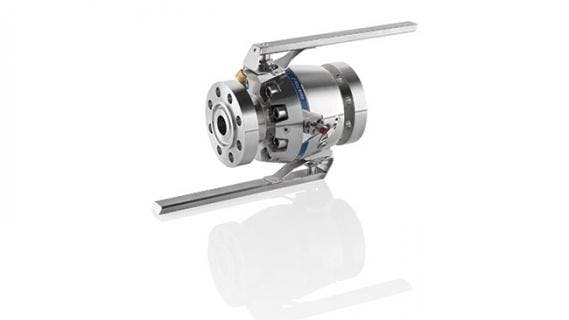

The Taurus Series Double Block & Bleed Valves provide a double isolation function with a Twin Ball Design and a bleed function by different bleed/vent valve designs.

The Block Valves are available from 1 to 6 in Full Bore (8 in Reduced Bore). The Standard Flanged Connections are offered by default acc. to ASME B16.5. The Ball Valves have an Anti-Blowout Stem Design and an Anti-Static Design and are Fire Safe tested and certified per API 607 and ISO 10497.

The Double Block & Bleed Piping Ball Valves are designed specifically for applications in the oil & gas industry.

The following designs are available:

  • 2 Piece and/or 3 Piece Design
  • Floating Ball Design
  • Trunnion Ball Design

The Taurus Series is designed, developed, and tested in Germany and certified by TÜV Süd. The assembly is done exclusively in Germany. Raw materials for pressure-containing parts are mainly sourced from European countries. Where necessary, PEEK as seat material and Duplex as ball material are provided.

Stems are generally made in XM-19, an austenitic stainless steel grade, which has a greater corrosion resistance and higher yield strength than 316 stainless steel. All other trim materials and all non-wetted parts are provided in 316 stainless steel. For valves in special alloys, all wetted parts are made of the special alloy material.
