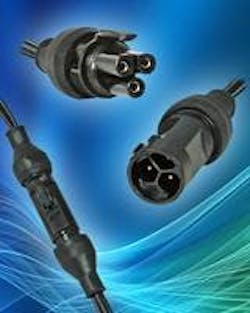

Anderson Power Products® introduces the IP68 rated, 3 position Mini SPEC Pak™ power connector. This compact connector is capable of 22 amps at 600 volts in a 16mm x 72mm (0.63” x 2.83”) sized connector. The 3 position Mini SPEC Pak™ environmentally sealed shell is IP68 rated and has an integral latch to prevent accidental un-mating. The flame resistant (UL 94-V0) shell is also touch safe per UL 1977 sec 10.2. The pin and socket contacts housed inside this IP68 shell are the same reliable contacts that are used other APP® power connectors such as the PowerMod® connector series. The 3 Position Mini SPEC Pak™ shell will accept up to three of these contacts, accommodating wire sizes from 24 to 14 AWG (0.50 to 2.50 mm²). These 30µ gold plated contacts make (up to) 500 mating cycles possible. Sequencing is available by choosing from one of three different pin lengths for design flexibility.
- capable of 22 amps at 600 volts
- environmentally sealed shell
