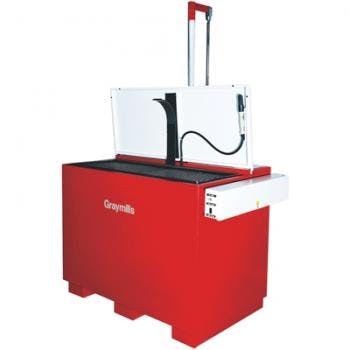

TL Series Liftkleen Semi-Automatic Immersion Parts Washers

June 1, 2011

The TL Series Liftkleen semi-automatic, immersion parts washer offers operating capabilities and features commonly only found in high-end equipment. The series features heavy gauge metal construction with durable powder-coated exteriors. For water-based (aqueous) applications, the series adds stainless steel construction, an insulated tank, and thermostatically adjustable heat up to 180°F (82.2°C).



Powerful electro-pneumatic lift mechanisms provide 300 lb. of weight capacity with adjustable stroke and speed settings. Generous platform and tank dimensions accommodate large parts up to 47 x 18 x 24 in. (L x W x H) (1.2 x 0.46 x 0.61 m) The automatic open-and-close lid and deluxe, filtered detail brush and recirculation pump allow spot cleaning of difficult to reach areas and add to the functionality of this multi-use equipment.



An available 3,000 GPH internal agitation pump for improved in-tank cleaning, and filtration and oil skimmer for fluid consistency round out the features of the TL’s offerings.

  • Large capacity, air-operated lift platform handles up to 300 lb.
  • Automatic lid opens and closes in conjunction with the platform
  • Flow-thru brush and pump allow for detail cleaning (*TL17 only)
  • GFCI and Fusible Fire Link safety protection
DescriptionTL17TLHS18Tank ConstructionMild SteelStainless SteelImmersion Space
(L x W x D)17 x 45 x 20 in.
(0.4 x 1.1 x 0.51 m)18 x 47 x 20 in.
(0.46 x 1.2 x 0.51 m)Overall Dimensions
(L x W x D) (Lid Open)40 x 56 x 84 in.
(1 x 1.4 x 2.1 m)Liquid Capacity150 GallonsLift Capacity300 lb. @ 90 psiStroke Length3 in. (76.2 mm)Heater ControlN/AAnalogHeater RangeN/A60 to 180°F (15.6 to 82.2°C)Heater PowerN/A8.85 kWPower Options115/60/1230/60/3 or 460/60/3Additional OptionsFiltrationYesOil SeparationYes3/4 hp High-Speed PumpYesOil SkimmerNoYesCycle TimerYes
