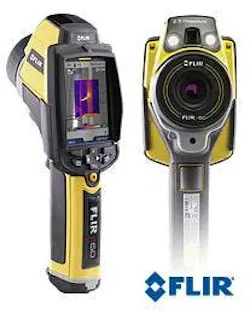

FLIR b60: Lightweight Infrared Thermal Imaging Camera

July 14, 2011

180 x 180 IR Resolution, Measures Temperature to 248°F (120°C)

  • Focal Plane Array detector with 180 x 180 pixels infrared resolution (32,400 pixels)
  • Built-in 2.3 Megapixel visible light digital camera with LED lamps
  • Functions include Scalable Picture-In-Picture (PIP) fusion, Copy to USB, Voice Annotation and Laser Pointer Marker
  • Area (Min/Max) Mode for Min/Max temperature readings within the selected area with Auto Hot/Cold spot marker
  • Optimized temperature range: -4°F to 248°F (-20°C to 120°C)
  • Instant Imaging function with Insulation and Dew Point alarms reveal areas with bad insulation and areas with risk of moisture condensation
  • Lightweight (1.3lbs), manual focus camera with 3.5" LCD display, easy one-handed operation and built-in laser pointer
  • 0.07°C @ 25°C Thermal Sensitivity (N.E.T.D) provides the resolution needed to find problems faster and easier
  • METERLiNK™ Wireless communication
  • Thumbnail Image Gallery function allows quick search of stored images
  • MicroSD™ card slot for image storage (more than 1,000 Radiometric JPEG images)
  • Complete with memory card with adapter, Li-Ion rechargeable battery, power supply, Bluetooth adapter, USB cable, hand strap, lens cap and hard carrying case
  • Includes QuickReport™ software for analysis of radiometric images
