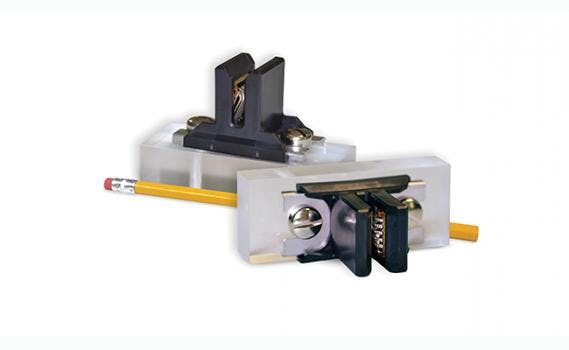

Floating busbar connector features plug-in mating to simplify assembly, maintenance, and expansion.
Supporting up to 300 amp, the PS4 Series connector has a floating contact alignment that can absorb mounting misalignment of up to 2mm in the XY direction to ease installation in data centers, power distribution units, storage battery systems, uninterrupted power supplies and more.
Plug-in mating not only reduces assembly and maintenance time, but also increases safety and reliability. Plug-in mating eliminates the need for the installer to touch the conductor, while ensuring a rugged connection regardless of the installer's skillset.
Specifications:
- compact design applicable to 1U size
- high current PS4 Series busbar comes in 150 and 300-amp versions
- 150-amp PS4 is designed for use with a busbar thickness of 3.175 mm (0.125 in.)
- 300-amp version supports a busbar thickness of 6.35 mm (0.25 in.)
