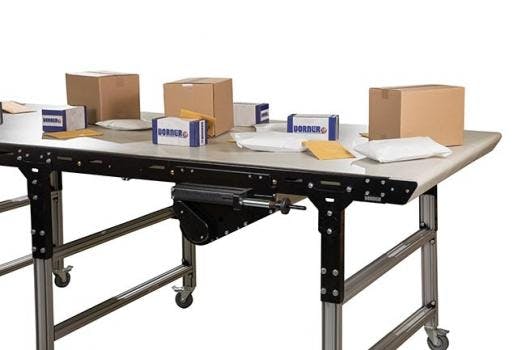

DCMove Belted Conveyor Streamlines Conveying

Feb. 22, 2023
Dorner's belted conveyor is built with an internally mounted motor within the tails, reducing footprint and providing an easy-to-integrate conveyor package.

A painted steel frame for added durability makes the DCMove Belted Conveyor ideal for material handling applications such as e-commerce, logistics, packaging, and palletizing, among others.


The conveyor offers a streamlined approach to conveyance with many features and performance specifications of Dorner’s heavy-duty platforms, including a wide load capacity range and a motor mounted inside the tails to reduce the conveyor’s footprint and aid integration within a larger material handling system.


Unique to this release is the availability of the plug-and-play iDrive v2 configurations. It allows customers to select the best control methods for their application ranging from a ready-to-run conveyor to a flexible control great for integration with PLCs via a variety of communication protocols including Ethernet. This is all done with the 24V DC brushless motors and controllers technology standard to the market.


Available in flat and cleated end drive belt, flat center drive belt, and flat iDrive v2belt models.

  • 24V DC brushless gearmotor and controller technology
  • Widths from 10 to 48 in. in 2 in. increments (254 to 1,219 mm in 50.8 mm increments)
  • Lengths from 2 to 40 ft (0.61 to 12.2 m) end drive, and 4 to 99 ft (1.2 to 30 m) for center drive
  • 3-in. (76.2 mm) diameter rollers with 1.25-in. (31.7 mm) nose bar option to handle smaller packages
  • Loads up to 400 lb. (181 kg) end drive, and 1,000 lb. (453 kg) for center drive
  • Speeds up to 600 ft/min. (182.8 m/min.)
  • Painted steel construction for most cost-competitive package movement
  • V-guide belt tracking and easy belt tensioning
  • Flush sides for maximized belt coverage
  • Flat and cleated belt options
  • Flat belt includes end drive, center drive, and internal motor mounting packages


  • Distribution Center Product Sorting
  • Packaging
  • Palletizing
  • Industrial Material Handling
  • Automated and Manual Assembly
