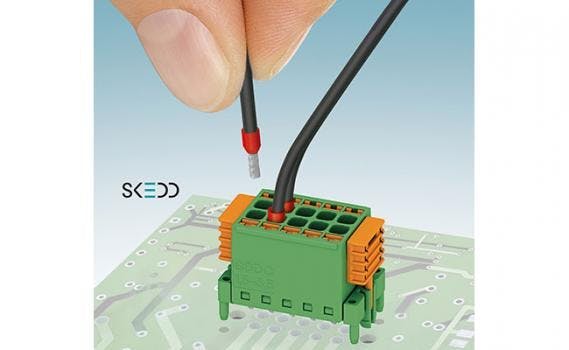

Direct plug-in connectors feature a double-row configuration, ideal for high-density PCB connections. The SDDC 1.5 connector system, featuring "SKEDD" plug-in technology, can accommodate four to 32 conductors.
SKEDD technology enables direct connection to the PCB via through-contacted bore holes, without the need for tools or an additional header. The elimination of the header and the soldering process reduces component and process costs for the user.
Wires can be terminated to the connector with the popular push-in spring connection. Solid and stranded wires with a ferrule can be pushed directly into the terminal block without opening the spring clamp. To remove the wires, the user simply presses the orange spring lever with a standard screwdriver.
The SDDC 1.5 connector range has a 0.1-in. (3.5 mm) centerline and can accommodate wires from 24 to 16 AWG. It's rated for currents up to 8 A at 300V UL.
Phoenix Contact
Middletown, PA
(800) 888-7388
[email protected]
www.phoenixcontact.com
