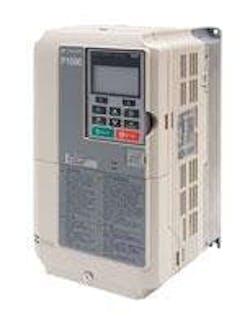

P1000 Variable Frequency Drive for Pumping Applications

Jan. 22, 2018

The P1000 variable speed drive provides simple, reliable, cost-effective control for variable-torque loads through 1,000 HP. Specific application features, energy savings, and network connectivity make the P1000 a great choice for industrial fans and pumps.


User-friendly configuration tools, including a multi-language LCD display with a real-time clock, parameter storage, fan, and pump application presets, and a portable USB copy unit make programming and configuration simple. DriveWizard computer software delivers configuration, monitoring, and trending functions enhanced by direct connectivity through the P1000’s standard USB port.


A significant quantity of control points are included as standard. For applications requiring more functionality, the P1000 offers three expansion ports for additional I/O, feedback, and network communications, including DeviceNet, EtherNet/IP, Modbus TCP/IP, Profibus-DP, PROFINET, BACnet, and Lonworks. Energy efficiency is maximized with variable speed control, and the P1000’s integrated 12 pulse version reduces harmonic demand from the power system, contributing to a cleaner environment.


Additionally, all materials used in the P1000 comply with the directive for Restriction of Hazardous Substances (RoHS). The P1000 drive is available in 200 to 240V AC Three Phase 50/60 Hz (up to 175 HP), 380 to 480V AC Three Phase 50/60 Hz (up to 500 HP), and 500 to 600V AC Three Phase 50/60Hz (up to 250 HP) ratings. All ratings are available in a Flange configuration that allows for mounting the drive with its heatsink out the back of any Type 12 enclosure. In addition, the P1000 is designed for use around the world and carries agency certifications for all major geographical regions.

  • for variable-torque loads through 500 HP
  • network connectivity
  • multi-language LCD display
