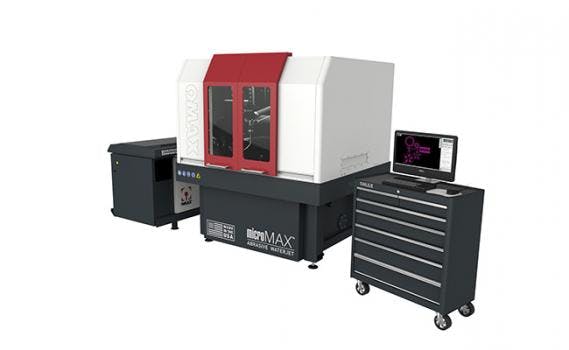

Latest generation MicroMAX abrasive waterjet system is capable of a positioning accuracy of less than five microns. The MicroMAX now comes standard with a Tilt-A-Jet cutting head to achieve virtually zero taper.
Contributing to the ultra-high precision capability of the MicroMAX is OMAX's proprietary linear traction drive system that utilizes optical encoders. Protective bellows seal off all precision components inside the MicroMAX and the machine's rigid construction minimizes vibration, enhancing its accuracy. A catcher tank cooling package is now an available option to keep the water at a steady 72°F, preventing the work material from expanding and contracting during machining.
Like all waterjets from OMAX, the MicroMAX can machine virtually any material in a wide variety of thicknesses. The cold-cutting nature of waterjet machining means there is no heat-affected zone (HAZ) and therefore no change to the material properties. Waterjets can handle materials that are difficult to cut with lasers and EDMs and make an excellent complement to other machine tools. A Rotary Axis accessory can be added to the MicroMAX for full 6-axis machining.
The MicroMAX has a small footprint and a steel, epoxy-coated enclosure with sliding doors for quiet, clean machining. A mobile work station with easy-to-use controller software provides the operator with convenient set-up and monitoring capability.
- Small, efficient footprint for minimal floorspace utilization
- Very high precision with 0.1 micron linear optical encoder system
- Highly rigid structure with low mass bridges and carriages
- Stiff construction greatly reduces vibration and increases accuracy
- Vibration isolation of table and gantries
- All components have matched thermal expansion
- Revolutionary patent-pending process for fine abrasive feed rate
- Full enclosure with environmental controls provides quiet, safe and clean operation below 80db
- Advanced pressure controls for piercing delicate materials
- No heat-affected zones or mechanical stresses
- Standard OMAX 7/15 Mini MAXJET 5 Nozzle acquires finer precision cutting capability with a 0.007" orifice and a 0.015" mixing tube combination
- Standard Tilt-A-Jet taper eliminating abrasivejet cutting head
- Standard Rapid Water Level Control for cleaner, safer, and quieter submerged cutting completes most work below 80 dBA
- Machines a wide range of materials with high accuracy
- Can machine hardened steel as easily as annealed steel
- Easily cut non-conductive and reflective materials
- Leaves behind a satin-smooth edge, reducing secondary operations
- Shipped as a completely pre-assembled and factory-tested system
- Designed and manufactured at the OMAX factory in Kent, Washington, USA
