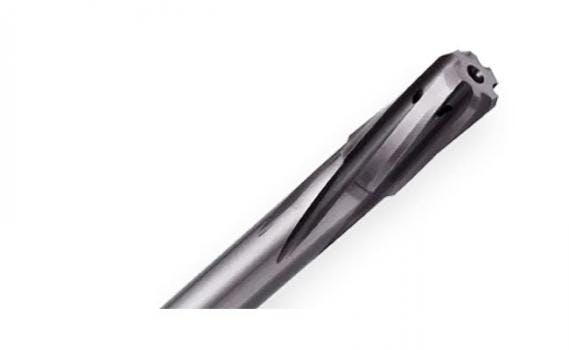

CoroReamer 435 is a versatile and high-performance reamer, suitable for a wide range of different materials. CoroReamer 835 is for steel and stainless materials when optimum performance is needed. The reamers are available in spiral flute designs for through holes and straight flute designs for blind holes. The diameter range is 4 to 20 mm (0.2 to 0.8 in.) as standard with an achievable hole tolerance of IT7.
435:
- Diameter range: 4 to 20 mm (0.2 to 0.8 in.)
- Suitable for all industry segments, e.g., general machining, die and mold, automotive, energy, and power generation
- Available in spiral flute for through holes and straight flute for blind holes
- Hole tolerance H7
835:
- For all industry segments, e.g., general machining, die and mold, automotive, energy ,and power generation.
- Diameter range: 4 to 20 mm (0.2 to 0.8 in.)
- Straight flute and spiral flute
- Cylindrical shank
- Internal coolant
- Carbide grade 1024 (TiAlN)
- Hole tolerance H7
