Explosion Proof Fluorescent Fixture - 2 Foot, 2 Lamp - Class 1, Div. 1 - Low Voltage 9-32 VDC

Jan. 23, 2013

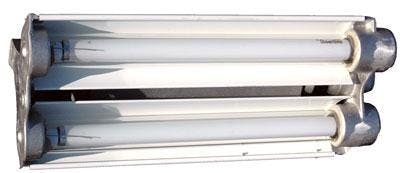

The Magnalight EPL-24-2L-LV 12V/24V Explosion Proof Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1,  Class 1 Division 2, has a T6 temperature rating and is ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist

The EPL-24-2L-LV fixture is a 2 foot long, 2 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications and a good choice for use in applications requiring a low voltage source of illumination. This T6 temperature rated fixture comes comes standard with T8 bulbs, and is designed to operate on 12 or 24 volts only. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish.This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and affordable low voltage lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.

Specifications / Additional Information

EPL-24-2L-LV Explosion Proof U.L. Ratings
UL Listing: United States - Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-27.5"  H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 30 Lbs UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 34 watts UL 844, 924
Voltage: 12V - 24V UL 1598 Marine Type
Total Lumens: F17-T8/841 Bulbs 2400 Class II Division 1- 2, Groups E,F,G
Lamp Life : F17-T8/841 Bulbs 24,000 Hours UL Certified Canadian Standards
Efficiency: F17-T8/841 Bulbs 184 Lumens per Watt UL listed for Paint Spray Booths*

California Title 24 Compliant
Ambient  Operating Temp Range: -30 C to 70 C

Operating Temp Rating: T6 Rated

Minimum Operating Temp:
-30 C

Maximum Case Temp: 90 C

Beam Angle: N/A Special Orders- Requirements
Color Temp: 4100K-STD-F17-T8/841 Bulbs Contact us for special requirements
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 inch threaded
U.L Approval: U.S Certificate  Canada Certificate

*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement.
