Explosion Proof LED light - 4 foot 2 lamp - Class 1 & 2 Division 1 LED Light - Paint Spray Booth T6

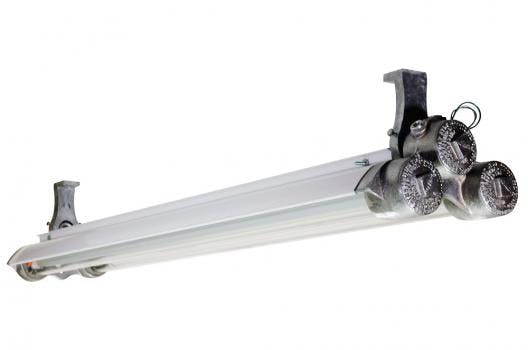

The Magnalight EPL-48-2L-LED Explosion Proof LED Light Fixture is U.S./Canada U.L. approved Class 1 Division 1 &2 and Class 2 Division 1 and 2 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light has a T-6 temperature rating and a carries a paint spray booth light certification as well.
The EPL-48-2L-LED is equipped with Magnalight’s specially designed LED T-series bulbs which produce 15% more foot candles of illumination at 8 feet as compared to standard T8 lamps when measured with an Extech light meter. Our LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers with their unexpectedly high light output levels. We have replaced two 8 foot dual lamp T8 fixtures in our own facility with our LED T series lamps and produced more illumination in the work area with only one 2 lamp 4 foot long LED fixture. We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light’s performance.
EPL-48-2L-LED Explosion Proof | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 1, Groups C and D T6 |
Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
Weight: 45 Lbs | UL 595 Marine Type (Saltwater) |
Total Watts: 48 watts | UL 844, 924 |
Voltage: Universal 120-277VAC 50/60 hz | UL 1598 Marine Type |
Low Voltage (Optional):12/24 Dc power | Class2, Division 1 - 2, Groups E,F,G |
LED Lamp Life Expectancy: 50,000+ Hours | UL Certified Canadian Standards |
Efficiency: 90 Lumens per Watt | UL listed for Paint Spray Booths |
Ambient Operating Temp Range:-30 C to 85 C | California Title 24 Compliant |
Operating Temp Rating: T6 Rated | |
Minimum Operating Temp: -30 C | |
Maximum Case Temp: 90 C | |
Beam Angle: 150 degrees | |
Color Temp: 5300K | Special Orders- Requirements |
Mounting:Surface Standard - Pendant Optional | Contact us for special requirements |
Wiring Hub: 1/2 inch threaded | |
Warranty: YES- 5 Years* | |
U.L Approval: U.S Certificate Canada Certificate | |
*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
