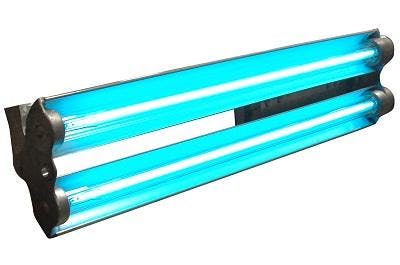

The EPL-48-2L-UV fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 1 and Class II Division 1&2 explosion proof fluorescent light that emits light in the ultraviolet spectrum. The EPL-49-2L-UV is made to order and can be configured to produce UVA, UVB or UVC light which is typically used for curing coatings or adhesives, pest management or in germicidal applications. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum coated with a high gloss reflective finish. This fixture can operate on voltages ranging from 120V-277V 50/60Hz and is U.L. approved for use in paint spray booths.
The EPL-48-2L-UV provides operators in hazardous locations with a reliable and durable UV lighting solution that combines effective production of UV light with with explosion proof protection.
| EPL-48-2L-UV Explosion Proof Ultraviolet | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
| Weight: 65Lbs | Class II Division 1- 2, Groups E,F,G |
| Total Watts: N/A* | UL 844, 924 |
| Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
| Total Lumens: F17-T8 UV Bulbs 7120 total - 3560 per bulb | UL 595 Outdoor Marine Type (Saltwater) |
| Lamp Life Expectancy: F17-T8 UV Bulbs N/A | California Title 24 Compliant |
| Efficiency: F17-T8 UV Bulbs:N/A | UL approval- U.S/ Canada Standards |
| Ambient Operating Temp Range:-30C to 70C | |
| Operating Temp Rating: T6 Rated | Special Orders- Requirements |
| Minimum Operating Temp: -30 C | Contact us for special requirements |
| Maximum Case Temp: 90 C | |
| Beam Angle: N/A | |
| Color: Ultraviolet- 400nm-315nm, 315nm-280nm, 280nm-100nm | |
| Mounting: Bracket Standard - Pendant Optional | |
| Wiring Hub: 1/2 inch threaded | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *Wattage totals vary with different lamp options. *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
